Tubus Racks

The ultimate racks with quick and easy installation.

These German-made cro-moly bicycle racks are without doubt the finest available today. All Tubus carriers are hand-made in Germany from 10mm - 0.5mm wall thickness cold-drawn steel. This makes them lighter and yet stiffer than the equivalent aluminium rack. Steel is also far more fatigue-resistant than aluminium - the major cause of failure. And steel can be repaired if the need ever arises. The carriers are finished in tough epoxy powder coating, except for the stainless carriers, which are hand-polished.
As fitted to many Orbit models and available via your local bike shop.

Rear Racks
Logo
New expedition rack which allows you to mount your panniers on the lower bar for greater stability.

Colour: black or silver
Weight: 730g
Payload: 40kg
Single 26"/700c size
Price: £76.99

Cosmo
Cosmo is a stainless steel version of the Logo.


Weight: 590g
Payload: 30kg
Single 700c/26" size
Price: £93.99

Cosmo

Black

Silver
Fly
Ultra-light rear rack for fast touring and Audax rides. Single 700c/26" size.

Colour: black or silver
Weight: 325g
Payload: 18kg
Now has bracket for rear lamp.
Price: £54.99
Fly Rack

Luna
A stainless steel version of the Fly. Now with bracket for rear lamp

Weight 390g
Load 18kg
Single 700c/26" size
Price: £71.50

Luna

Black

Silver
Vega
The Vega is a mid-weight rear rack in tubular cro-moly steel.
It is essentially the Logo without the rails and rear strut.
The 4-point fixing excellent rigidity, and rear light plate.


Weight: 510g
Payload: 25kg
Colour: black or silver
Price: £65.99
Vega Rack


Black

Silver

Front Racks
Ergo
Using 10mm tube, this rack is an elegant front carrier.
If your forks do not have low-rider bosses, a mounting clip set is available for £8.

Colour: black or silver
Weight: 470g
Payload: 15kg
Price: £65.99
Ergo
Nova
A stainless-steel version of the Ergo, designed to compliment your stainless-steel rear rack.
If your forks do not have low-rider bosses, a fork blade clip set is available for £8.

Weight: 440g
Payload: 15kg
Price: £76.99
Nova

Black

Silver
Duo
Custom low-rider, requiring braze-on bosses on your forks.




Colour: silver or black
Weight: 450g
Payload: 15kg
Price: £59.99
Swing
Extremely well-engineered front rack for mountain bikes, highly rigid to have minimal effect on handling. Compatible with all 1- 1/8" suspension forks.


Colour: black
Weight: 750g
Load: 15kg
Price: £82.99
Swing Rack

Black

Silver
Tubus Accessories

Seat stay clips
These stainless-steel mounting sets will work with any rack, if you don't have bosses on your seat-stays. Available in various diameters, for both steel and aluminium frames.
Small (14-15mm)
Med (16-17mm)
Large (18-19mm)
XL (21-22mm)
£13.20/pr


Small

Medium

Large

Xtra Large

Fork blade clips
For specifically for use with the Tubus Ergo & Nova lowriders, these items will allow you to fit the your rack if your fork doesn't have lowrider bosses.

£8.80/pr

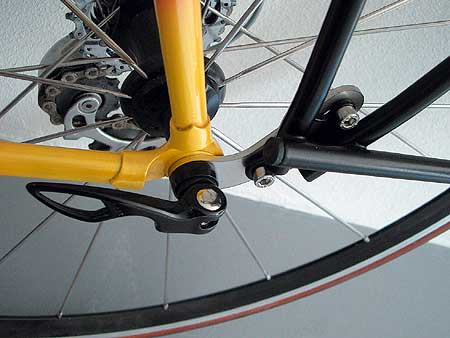

Axle mount fittings
These stainless steel plates will only work with Tubus rack models - Logo, Cosmo and Vega. They allow you to use the racks on bikes without eyes on the rear dropouts.
£21.99/set


Disk brake fittings
These steel plates will only work with Tubus rack models, Logo, Cosmo and Vega. they move the rack further back, thus clearing the disk brake caliper.
£10.99/set
